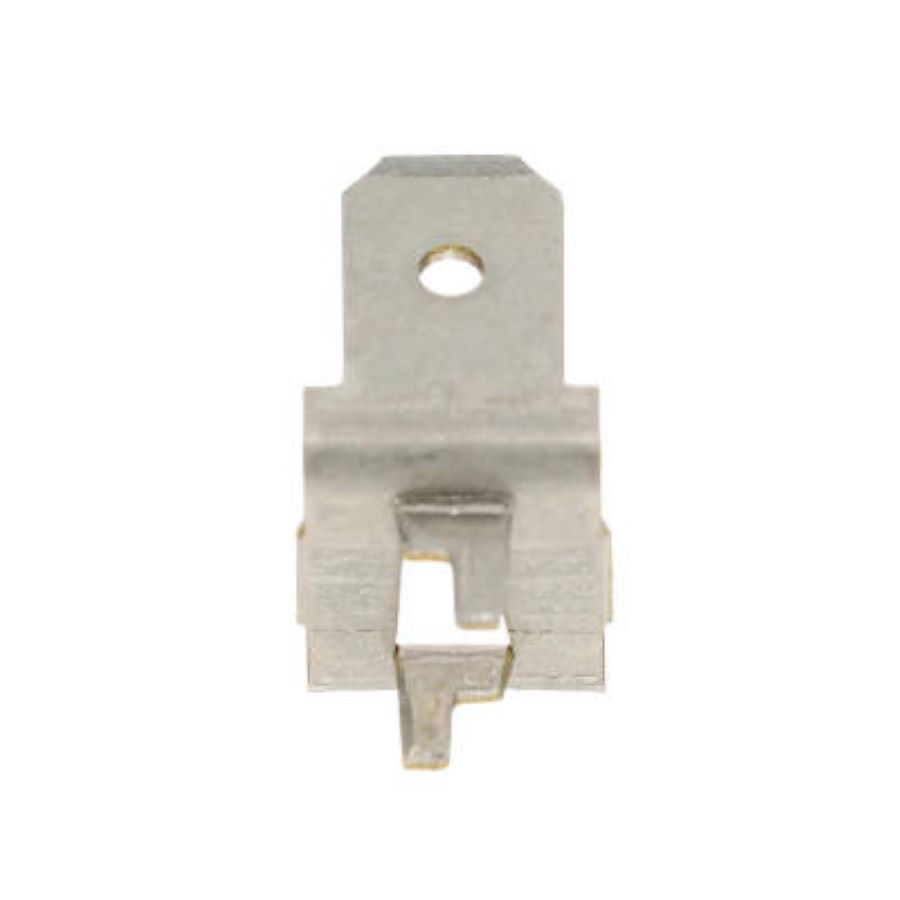

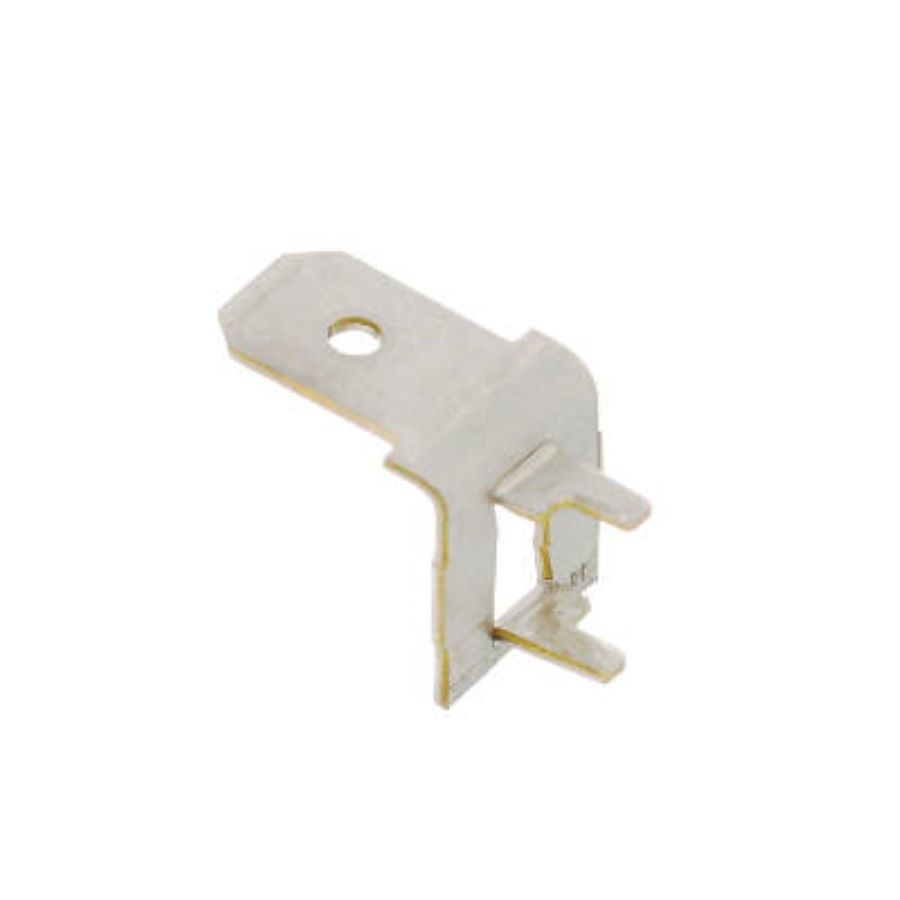

62747-1
Manufacturer:
TE Connectivity
Mfr.Part #:
62747-1
Datasheet:
Description:
Terminals Through Hole Male
| Parameter | Value |
|---|---|
| Length | 11.6 mm |
| Termination | Tab |
| Height | 8.43 mm |
| Material | Brass |
| Packaging | Bulk |
| Depth | 7.18 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Type | Tab |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Gender | Male |
| ELV | Compliant |
| Body Material | Brass |
| Tab Width | 4.7498 mm |
| Insulation | Non-Insulated |
| Plating | Tin |
| Termination Style | Solder |
| Body Plating | Tin |
| PCB Thickness | 1.5748 mm |
| Plating Thickness | 3.81 µm |
| Underplate Material | Copper |
| Insulated Wire Support | No |
| Mating Tab Width | 4.75 mm |
| Tab Length | 6.35 mm |
| Tab Thickness | 508 µm |
| Stud Size | 4.75 mm |
Stock: 8173
Distributors
pcbx
pcbxUnit Price$0.16244
Ext.Price$0.16244
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.16244 | $0.16244 |
| 10 | $0.14790 | $1.47900 |
| 50 | $0.13210 | $6.60500 |
| 100 | $0.11798 | $11.79800 |
| 500 | $0.10242 | $51.21000 |
| 1000 | $0.08891 | $88.91000 |
| 3000 | $0.08327 | $249.81000 |
| 5000 | $0.07537 | $376.85000 |
| 10000 | $0.06822 | $682.20000 |
